1.4923 (X22CrMoV12-1) - Acero Resistente al Calor

1.4923 (X22CrMoV12-1) – Acero Resistente al Calor

Categoría:



1.4923 (X22CrMoV12-1) – Acero Resistente al Calor de Alta Calidad

SHUNFU METAL – Su Fabricante Confiable de Aceros Especiales

Introducción del Acero 1.4923 y Sus Aplicaciones

El acero 1.4923 (X22CrMoV12-1) fabricado por SHUNFU METAL es un acero de alta temperatura con cromo que ofrece excelente resistencia a la oxidación hasta 600°C. Gracias a su aleación con vanadio, se logra una mejora significativa en la resistencia a la fluencia, convirtiéndolo en la opción ideal para aplicaciones críticas en alta temperatura.

Como fabricante especializado, SHUNFU METAL produce este acero con los más altos estándares de calidad, garantizando propiedades superiores para aplicaciones industriales exigentes. Nuestro acero 1.4923 presenta excelente resistencia a la corrosión en ambientes con vapor de agua sin presencia de cloro y concentraciones salinas.

Aplicaciones Principales:

• Generación de Energía: Componentes para centrales térmicas y calderas de vapor

• Industria Petroquímica: Pernos y tornillos de alta temperatura

• Turbomaquinaria: Álabes de turbina y ejes rotativos

• Tecnología de Reactores: Componentes estructurales críticos

Composición Química del Acero 1.4923

SHUNFU METAL controla estrictamente la composición química del acero 1.4923 para garantizar propiedades consistentes y superiores. Nuestra experiencia como fabricante nos permite optimizar cada elemento para maximizar el rendimiento:

Elemento C Si Mn Cr Mo V
Mín (%) 0,18 0,1 0,4 11,0 0,8 0,25
Máx (%) 0,24 0,5 0,8 12,5 1,2 0,35

Tipos de Procesamiento Disponibles en SHUNFU METAL

Como fabricante integral, SHUNFU METAL ofrece múltiples procesos de manufactura para el acero 1.4923, adaptándonos a las necesidades específicas de cada proyecto y manejando pedidos de gran volumen con eficiencia excepcional:

🔥 Laminado en Caliente

Proceso optimizado para producción en gran escala con excelentes propiedades mecánicas y estructura homogénea.

⚒️ Forjado en Caliente

Tecnología avanzada de forjado para componentes críticos que requieren máxima resistencia y confiabilidad.

Formas y Geometrías Disponibles

SHUNFU METAL, como fabricante especializado, produce el acero 1.4923 en múltiples configuraciones para satisfacer todos los requerimientos industriales. Nuestras capacidades de producción nos permiten manejar pedidos de gran volumen en las siguientes formas:

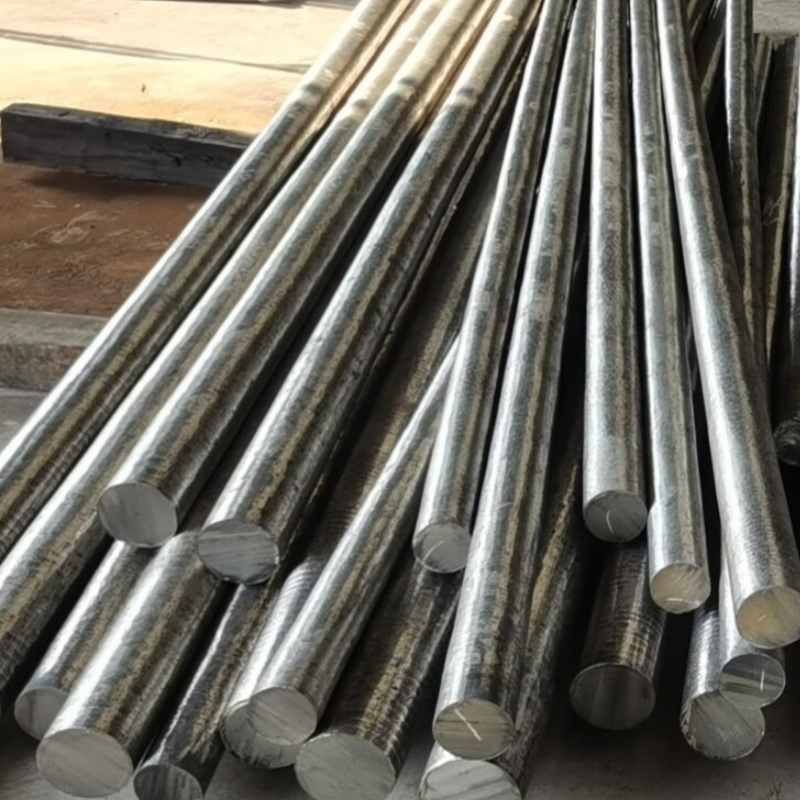

🔵 Barras Redondas

⬜ Barras Planas

📋 Placas y Láminas

🔘 Tubos

Capacidades de Dimensiones y Precisión

Las instalaciones de producción de SHUNFU METAL están equipadas con tecnología de vanguardia que nos permite ofrecer un amplio rango de dimensiones y tolerancias precisas para satisfacer los requerimientos más exigentes de pedidos de gran volumen:

Laminado en Caliente

Diámetro máximo: 260mm

Forjado

Diámetro máximo: 1200mm

Mecanizado de Precisión

Tolerancias ultra-precisas

Mecanizado Especializado: Nuestras capacidades de torneado y rectificado nos permiten lograr dimensiones ultra-precisas y acabados superficiales excepcionales, ideales para aplicaciones críticas que requieren tolerancias estrictas.

Ventajas Competitivas de SHUNFU METAL

Como fabricante líder en aceros especiales, SHUNFU METAL ofrece ventajas únicas que nos distinguen en el mercado global. Especializados en pedidos de gran volumen, proporcionamos soluciones integrales que optimizan costos y tiempos:

🔥 Tratamiento Térmico Propio

Control total del proceso garantiza calidad consistente y tiempos de entrega reducidos para grandes volúmenes.

⚙️ Mecanizado Integral

Capacidades de torneado y rectificado propias reducen costos y tiempos para nuestros clientes.

📦 Pedidos de Gran Volumen

Especializados en producción masiva con precios competitivos y entregas programadas.

🏭 Manufactura Directa

Sin intermediarios – precios de fábrica y comunicación directa con ingenieros.

Propiedades Mecánicas y Tratamiento Térmico

SHUNFU METAL garantiza propiedades mecánicas superiores mediante nuestros procesos de tratamiento térmico especializados. Como fabricante con instalaciones propias, controlamos cada etapa del proceso:

Condición Límite Elástico (N/mm²) Resistencia Tensil (N/mm²) Elongación (%) Impacto Charpy-V (J)
+QT1 ≥ 600 800 – 950 ≥ 14 ≥ 27
+QT2 ≥ 700 900 – 1050 ≥ 14 ≥ 20

Parámetros de Tratamiento Térmico SHUNFU METAL:

Temple: 1020-1070°C con enfriamiento controlado en aceite, polímero o aire

Revenido QT1: 680-740°C por mínimo 2 horas

Revenido QT2: 660-720°C por mínimo 2 horas

¡Solicite Su Cotización para Pedidos de Gran Volumen!

SHUNFU METAL es su fabricante confiable para acero 1.4923 de alta calidad. Especializados en producción masiva con entregas rápidas y precios competitivos.

📞 Contacte a nuestros ingenieros especializados hoy mismo

SHUNFU METAL – Fabricante Líder en Aceros Especiales

Especialistas en pedidos de gran volumen | Calidad garantizada | Entregas rápidas
